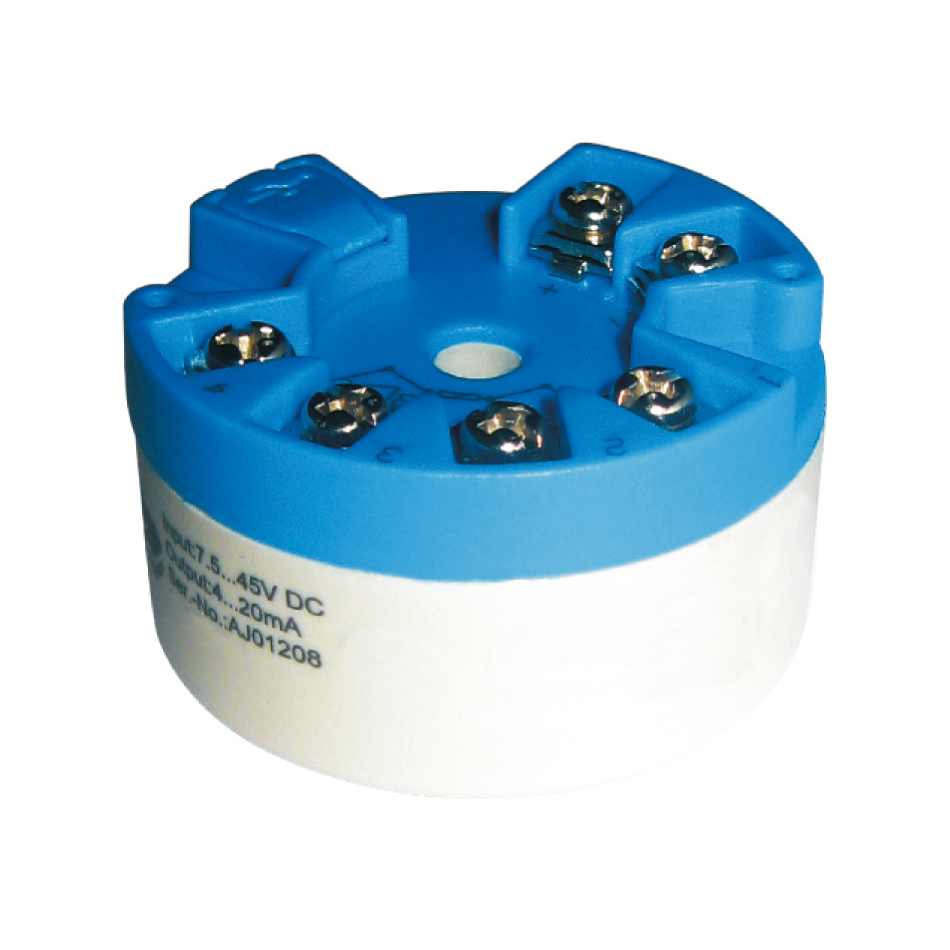

Name: KINS_TT_Temperature Transmitter_KIT-TT10
Availability: InStock

KINS_TT_Temperature Transmitter_KIT-TT10

가격문의(상세정보 참조)

Summary : Universal head transmitter for resistance thermometers (RTD), thermocouples (TC), resistance (Ohm), voltage transmitter (mV)
Output : 4~20mA with HART
Input : Resistance Thermometer (RTD)
Thermocouple (TC)
Resistance Transmitter (Ohm)
Votage Transmitter (mV)
Power Supply : 7.5~45V DC
RTD : Pt 100, Ni 100 : 0.2K or 0.08%
Pt 500, Ni 500 : 0.5K or 0.20%
Pt 1000, Ni 1000 : 0.3K or 0.12%
Cu 50 : 0.2K or 0.08%
Cu 100 : 0.3K or 0.12%
TC : K, J, T, E type : 0.5K or 0.08%
N type : 1.0K or 0.08%
S, B, R type : 2.0K or 0.08%
Ohm : 0 to 400 Ohm : ±0.1Ohm or 0.08%
0 to 2000 Ohm : ±1.5Ohm or 0.12%
mV : -10 to 75mV : ±20㎶ or 0.08%
-100 to 100mV : ±0㎶ or 0.08%
-100 to 500mV : ±0㎶ or 0.08%
-100 to 2000mV : ±0㎶ or 0.08%
Housing : PC
Potting : epoxy
